Part XV - Regular Expressions
v1.03 11.04.2011

15.1 Two problems...
15.2 Regular expressions.
15.3 Links.
15.4 Defining and using.
15.5 Experiment (REval).
15.6 Literals.
15.7 Escaping
15.8 Special characters.
15.9 Classes and ranges.
15.10 Metacharacters.
15.11 Repetition and wildcards.
15.12 Grouping.
15.13 Position.
15.14 Alternatives.


15.1 Two problems...


A programmer faces a problem. So she teaches herself regular expressions. Now she has to face two problems.

:-)

The above phrase I spotted somewhere on the InterNet. It's a bit unfair, but also a bit true. Although regular expressions can be immensely powerful and effective, they can also be the cause of serious problems, and are certainly not an universal solution to any and all problems. Consider them yet another tool in the programmers' toolbox, powerful yet sharp... Mind your fingers!


15.2 Regular expressions.


(As usual I document these things whilst trying to learn and understand them. So these pages could show some irregularities as well as a definite non-structural approach. Gotta' love the web and my sense of direction :-))

Are regular expressions difficult? Well... that depends. Are they useful? Well... that depends as well. Regular expressions can cause many problems, but they also provide opportunities. They are yet another tool in our programmer's toolbox, so it's wise to know a litte about them.

Regular expressions allow us to build filters, with which we can test strings for certain conditions, and retrieve parts of those strings. It's even possible to do conversions etc. on the fly, but that's beyond my limited understanding. (Scourge the web, young padawan, scourge the web...)


15.3 Links.


In no way can I be as thorough or complete or even remotely knowledgable as some of the gurus on the Internet. In case you know you won't be impressed with my explanation of regular expressions you might try the following links before continueing with my attempt...

Still with me? Okay...


15.4 Defining and using regular expressions in PureBasic.


Step one is create a regular expression:

; survival guide 15_2_100 create regexp
; pb 4.51rc2
;
CreateRegularExpression(1,"a")
CreateRegularExpression(2,"r")
;
Debug MatchRegularExpression(1,"appel")    ; 1 or 'true' as 'a' is found inside 'appel'
Debug MatchRegularExpression(1,"peer")     ; 0 or 'false' as 'a' is not found inside 'peer'
Debug MatchRegularExpression(2,"appel")    ; 0 or 'false' as 'r' is not found inside 'appel'
Debug MatchRegularExpression(2,"peer")     ; 1 or 'true' as 'r' is found inside 'peer'
In PureBasic first create a rule, and assign a number to it. Then test the string against that rule by using the number. So, if you use the same rule many times, you only have to create it once. In the example above expression 1 is used more than once, as is expression 2.

CreateRegularExpression supports using #PB_Any, so it's easy to create and delete an expression if you only need it once:

; survival guide 15_2_200 create regexp
; pb 4.51rc2
;
x = CreateRegularExpression(#PB_Any,"a")   ; create the expression
Debug MatchRegularExpression(x,"appel")    ; 1 or 'true' as 'a' is found inside 'appel'
FreeRegularExpression(x)                   ; free the expression
So we now know how to 'create and use' regular expressions, but we still don't know how to build them... That's what the rest of this page is about. Indeed, there's only 20 odd lines or so of actual PureBasic on this page...

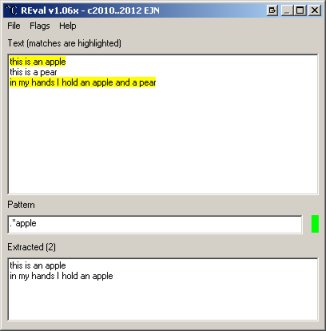

15.5 Experiment (REval).


A regular expression follows its own syntax, it's a kind of language by itself. To simplify experimenting, I've put a little tool on this site called REval. It helps you quickly fooling around with regular expressions without having to modify and execute PureBasic code. You can find it here.

Of course, I'm not the only one who wrote such a thing. Here's another one called RexMan and of course also written in PureBasic. (I totally overlooked it, and probably wouldn't have build my own had I known / remembered :-))

There are definitely some differences between the different regular expression engines out in the world. If you use some external tool to piece together a (complex) regular expression, then be sure to test it within PureBasic.


15.6 Literals.


Let's start with building a very simple regular expression: (in the remainder of this page I'll mark the regular expressions themselves in a different colour)

a

appel             - match
zppel             - no match
Appel             - no match
appelboom         - match
aardappel         - match
peer              - no match

When matching 'appel' against the regular expression 'a' we'll find a match. Somewhere in the string we tested ('appel') we found the regular expression ('a'). It didn't matter what was left or right of the 'a'. Obviously 'Appel' did not contain a lowercase 'a' so that did not result in a match. 'appelboom' contains an 'a' so that's a match as well.

Of course we can test against more than just a single character:

boom

appel             - no match
zppel             - no match
Appel             - no match
appelboom         - match
aardappel         - no match
peer              - no match

Only 'appleboom' contains 'boom', so only that one returns a match.


15.7 Escaping.


Some characters have a special meaning, either inside or outside a 'class'. These characters are called 'metacharacters'. More about classes later, for now just consider 'classes' anything between square brackets '[' and ']'.

[ \ ^ $ . | ? * + ( )
If any of these characters is part of a regular expression it tells the system to do 'something', but it's not going to treat them as if they were normal characters. If you want to use any of these characters as 'normal text' you have to preceed them with a backslash '\'. For example, if you want to look for each occurence of the word 'apple' followed by a question mark, you would have to build your regular expression like this:
appel\?

appel             - no match
appelboom         - no match
appelboom?        - no match
appel?boom        - match

If you would not do so, the question mark would be treated much differently, and the outcome would then be:
appel?

appel             - match
appelboom         - match
appelboom?        - match
appel?boom        - match

Clearly not the same thing :-)


15.8 Special characters.


The 'escape' character '\' is not only used in combination with metacharacters, it can also be used to generate 'special' characters.

\t                - tab, chr(9)
\r                - return, cr, chr(13)
\n                - line feed, lf, chr(10)
\e                - escape, esc, chr(27)
\x09              - specific character in hexadecimal, \x09 is for example tab
\u20AC            - unicade character, \u20AC is the euro currency sign
\d                - digit ie. single character that is a number 0 to 9
\w                - word character ie. single character a-z, A-Z, 0-9, and underscore
\s                - single 'whitespace' character ie. space, tab, line breaks
There are more special characters than the above, each with their own meaning.

Besides the metacharacters (which have now been mentioned so often I'm no longer going to use single quotes around them :-)) there's also the legendary dot, which stands for any single character:

.                 - any single character

15.9 Classes and ranges.


Instead of matching a specific character we could also match against a selection of characters, also called a 'class'. In the example above we could see that regular expressions are case sensitive. So let's build a regular expression that would match 'appel' as well as 'Appel':

[aA]ppel

appel             - match
zppel             - no match
Appel             - match
appelboom         - match
aardappel         - match
peer              - no match

So, using the square brackets we defined what characters we would accept at that position in the string. We could specify a collection of single characters, or one or more ranges using the dash '-':
[Aa-z]ppel

appel             - match
zppel             - match
Appel             - match
appelboom         - match
aardappel         - match
peer              - no match

Some characters need to be escaped first when they are used inside a class ie. inside square brackets. These are:
^ \ ] -
You do not have to escape the other metacharacters (again that word :-)) inside a class.

If you want to explicitly exclude a character, you have to preceed it with a caret '^'.

So, summarizing: a class is a group of characters enclosed by square brackets, ranges can be specified by using '-', each character or range inside the brackets is a valid match. Here are some examples:

    [a]               - single character 'a'
    [ab]              - single character, either 'a' or 'b'
    [^a]              - any single character except 'a'
    [0-9]             - single character 0 to 9
    [0-9A-F]          - single hexadecimal character
    c[ao]t            - matches 'cat' and 'cot' but not 'cit' or 'ct'

15.10 Metacharacters.


Metacharacters pretty much do nothing by themselves, but they modify the behaviour of other characters.

[ \ ^ $ . | ? * + ( )

[          - start of a class
\          - escape character
^          - not or start of the string
$          - end of the string
.          - any single character
|          - seperator between alternatives
?          - none or one instance
+          - one or many instances
*          - none, one or many instances
(          - start of a group
)          - end of a group

If you want to use a metacharacter as a 'literal' you need to 'escape' it (preceed it with a backslash):
cats|dogs         - matches 'cats' or 'dogs'
cats\|dogs        - matches 'cats|dogs'
colo?r            - matches 'color' and 'colour'
colo\?r           - matches 'colo?r'
Metacharacters are treated differently Inside square brackets (ie. inside classes) and outside. Inside square brackets you do not have to escape any metacharacters except ^ \ ] -
[1\-2]            - matches '1' '2' and '-'
[1-2]             - matches '1' '2' but not '-'

15.11 Repetition and wildcards.


A class stands for a single character. A regular expression such as:

[A-F0-9][A-F0-9]
... would match anything that contains two hexadecimal characters directly next to each other (ie. 00 to FF). Let's test that:
[A-F0-9][A-F0-9]

00                - match
AB                - match
0F                - match
0f               - no match, as 'f' is lowercase
FF                - match
appel00peer       - match, it contains 00
0appel0peer       - no match, there's stuff between 'A' and 'B'

Let's say we would like to find anything containing 'apple' followed by a single hexadecimal character, followed by 'boom' we could use something like:
appel[0-9A-F]boom

appelboom         - no match
appel0boom        - match
appelFboom        - match
appelABboom       - no match
appelF90Cboom     - no match

If we'd like to make the hexadecimal part optional, simply add a '?' sign. It tells the system that the preceeding character or class is optional, ie. it may not exist, or exist one time:
appel[0-9A-F]?boom

appelboom         - match
appel0boom        - match
appelFboom        - match
appelABboom       - no match
appelF90Cboom     - no match

Specifying all possible characters may be a bit cumbersome if any character would be good, in those cases a simple dot '.' will do.
appel.?boom

appelboom         - match
appel0boom        - match
appelFboom        - match
appelABboom       - no match, more than one character
appelF90Cboom     - no match, more than one character

We can not only specify if, but also how many times a character (or class) may or must occur:
appel.boom        - anything only once
appel.?boom       - anything none or once
appel.*boom       - none, once, or many
appel.+boom       - once or many
appel.{2,4}boom   - at least two, and maximal four
We now have multiple options to expand or limit our selection. Summarizing:
^          - anything but the specified character
.                 - any single character except line breaks (see multiline flag)
                - preceding character none or one time
*                 - none up to many times
+                 - one up to many times
{n}               - n times
{n1,n2}           - minimal n1 times, maximal n2 times
aa?               - matches 'a' as well as 'aa'
test{3}           - matches 'testtt'
[0-9]{3}          - matches '000' '001' etc. all the way up to '999'
(test){3}         - matches 'testtesttest'
get(value)?      - matches 'get' as well as 'getvalue'
Note: wildcards '*' and '+' are 'greedy', that is they will grab as much as they can unless that would invalidate a match. (Greedy and lazy and other options are beyond the scope of this explanation, sorry. Check the web for more.)


15.12 Grouping.


()                - groups a part of the expression
(test){3}         - matches 'testtesttest'
Grouping allows you to build more complex, or better readable expressions. (More on alternatives using the pipe '|' character you'll find here.)
get(value)?       - matches 'get' as well as 'getvalue'
(cat(dog)?)|horse - matches 'cat', 'catdog' as well as 'horse'

15.13 Position.


Some metacharacters and some special codes allow us to specify the start or end of the string to match. Using the caret '^' outside the class brackets we refer to the start of a string. If our string must start with 'boom' we can use:

^boom

boom              - match
appelboom         - no match

boom

boom              - match
appelboom         - match

Note that the caret '^' inside a class has a different meaning!

Here are some examples and variations of codes that define a 'position':

^                 - outside brackets! start of the string
$                 - end of string
bob               - bob may exist anywhere in the string
^bob              - string must start with 'bob'
bob$              - string must end with 'bob'
^bob$             - string must be 'bob'
\b                - word boundary
\bis              - would match 'this is' but would not match 'thisis'
\B                - opposite of \b, ie. the match must be 'inside' a word
\Bis              - would match 'thatis' but would not match 'that is'
\A \Z \z          - start and end of strings, see the web for more details

15.14 Alternatives.


Classes allow multiple options for a single character, or in combination with a wildcard multiple occurancies of that character. You can also specify complete words or expressions as alternatives:

big(cat|dog)

bigcat            - match
bigdog            - match
bigmouse          - no match

Use brackets to control what is part of each 'alternative':
bigcat|dog - either 'bigcat' or 'dog'
big(cat|dog) - either 'bigcat' or 'bigdog'
a(bigcat)|(dog) - either 'abigcat' or 'dog)'
a(bigcat|dog) - either 'abigcat' or 'adog'
[abc]|[def]       - is the same as [abcdef]
I find the placement of brackets, when using alternatives, a little confusing sometimes (and often a cause for errors).
